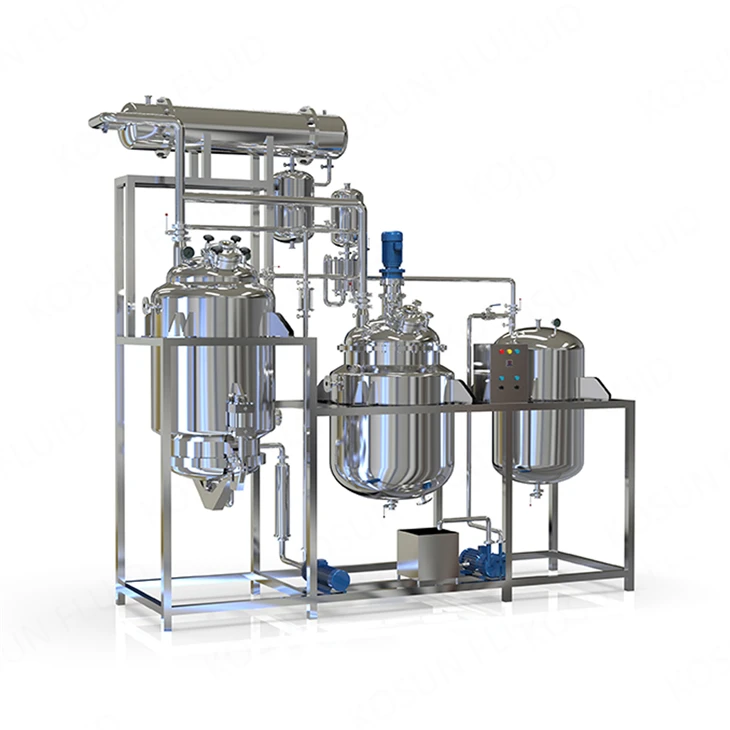

This stainless steel extraction tank is specifically designed for the leaching extraction of herbal and botanical materials. Equipped with a high-torque, powerful agitator, it continuously turns the material during extraction to ensure thorough contact between the botanical solids and the solvent (water or ethanol), effectively breaking the diffusion boundary layer and accelerating the dissolution of active compounds, thereby significantly improving extraction efficiency and output per unit time. Constructed from high-grade 304 or 316L stainless steel with a mirror-polished, dead‑free interior, the tank features a jacketed heating system and precise temperature control, accommodating various extraction processes from ambient to 100°C (or higher upon request), while fully meeting food‑grade and GMP hygienic standards to guarantee the purity and safety of the extract. With CIP cleaning capability, convenient residue discharge, and user‑friendly operation, this tank is widely used in TCM pharmaceutical, botanical extract, nutraceutical, and food additive production, making it an ideal core equipment for achieving high yield and high purity.
|
Specification / Model |
ZN-50 |
ZN-100 |
ZN-200 |
ZN-300 |
ZN-500 |
ZN-700 |
ZN-1000 |
|
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
700 |
1000 |
|
|
Receiver Tank Volume (L) |
35 |
45 |
60 |
76 |
100 |
125 |
165 |
|
|
Jacket Pressure (MPa) |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
|
|
Vacuum Level (mmHg) |
600-700 |
600-700 |
600-700 |
600-700 |
600-700 |
600-700 |
600-700 |
|
|
Heating Area (m²) |
0.25 |
0.59 |
0.8 |
1.1 |
1.45 |
1.8 |
2.2 |
|
|
Condensing Area (m²) |
1.2 |
1.7 |
2.4 |
3.0 |
3.3 |
3.6 |
4.4 |
|
|
Cooling Area (m²) |
0.29 |
0.35 |
0.45 |
0.6 |
0.7 |
0.85 |
1.05 |
|
|
Overall Dimensions |
L |
1200 |
1350 |
1700 |
1700 |
2100 |
2400 |
2390 |
|
W |
600 |
700 |
800 |
1000 |
1200 |
1300 |
1300 |
|
|
H |
2200 |
2200 |
2700 |
3400 |
3400 |
3400 |
3720 |
|
|
Technical Documentation Support: The equipment is supplied with accompanying drawings (CAD), installation diagrams, product quality certificates, installation and operation manuals, and other relevant documents. |
||||||||
