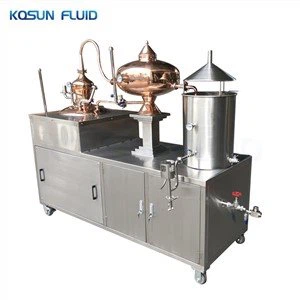

The distillation tank boiler sizes range from 100 litres to 2,000 litres , can be constructed with stainless steel and/or copper, and usually offered in a hybrid-style pot still with a wide selection of heads, bypassable multi-tray rectification columns and gin basket complete with the condenser. Customized to suite your specific spirit range. It can be designed with the blender or not
Different custom head design , the plate columns with dephlegmator ,full CIP construction
The Gin Basket
Stainless steel construction with Removable perforated basket
Bypass or inline and Full CIP construction
Condenser is Tube and shell type
Stainless steel or copper construction
Chilled with glycol or water
Simple parrot
Full CIP
Optional glass parrot
Optional thermostatic valve
Tube and shell column condenser
Stainless steel or copper construction
Chilled with glycol or water
Columns
Copper construction
Bubble cap trays
Individual Tray bypass
Full CIP in each tray
Distilling tank boiler capacity | 100l-5000l |
Voltage | 110v ,220v,380v ,440,460v,480v |
Material | Red copper T2 ,Stainless steel |
Motor | UL/CSA/CE/ATEX,or Customizable brand |
Heating | Direct inner heating; Jacket heating |
Liquor type | Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon |
Heating type | Steam/water bath/oil /electric /fire /gas |
Distillation column | 4plates to 20plates |
