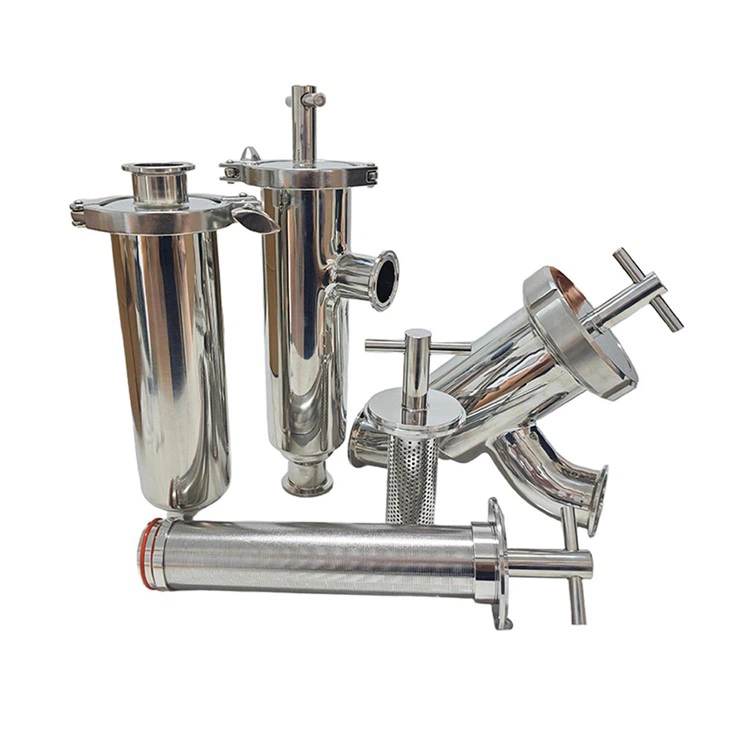

Data Center Liquid Cooling Stainless Steel Filter

The Data Center Liquid Cooling Stainless Steel Filter is a high-performance filtration solution built from premium 316L stainless steel, designed specifically for AI data center liquid cooling systems. As artificial intelligence workloads drive ever higher compute densities, maintaining coolant cleanliness becomes critical to system reliability and thermal efficiency. This filter directly addresses that need by removing particulate contaminants, welding slag, and corrosion byproducts from the cooling loop.

The use of 316L stainless steel ensures excellent corrosion resistance, especially against chlorides and common coolant mixtures such as ethylene glycol or propylene glycol with deionized water. Unlike filters with coated housings or non‑metallic components, this all‑steel construction will not rust, peel, or degrade over time, offering a service life that matches the data center infrastructure itself.

From a performance standpoint, the filter is engineered for high flow rates with minimal pressure drop, so it does not interfere with the heat exchange efficiency of cold plates or immersion cooling systems. By keeping the coolant free of micro‑particles, it prevents clogging in cold plate microchannels and quick disconnect connectors, which significantly reduces the risk of unplanned downtime. This directly supports the goal of maximum system uptime and enables efficient thermal management, helping maintain an optimal power usage effectiveness.

Typical filtration ratings are available at fifty, one hundred, or two hundred micrometers depending on system requirements. The filter can handle a maximum operating pressure of sixteen bar, or two hundred thirty two psi, and operates reliably across a temperature range from negative twenty degrees Celsius to positive one hundred twenty degrees Celsius. Connection options include threaded, flanged, or clamp types for pipe sizes ranging from half an inch to two inches. The removable stainless steel mesh can be cleaned by ultrasonic bath or simple rinsing and then reused, which keeps maintenance costs low. There is also an optional bypass relief valve that prevents complete flow stoppage in the unlikely event the mesh becomes fully clogged, adding a layer of safety redundancy.

Common applications include cold plate or immersion cooling racks for AI training servers, secondary loops of coolant distribution units in AI data centers, indirect liquid cooling for supercomputing clusters, and compact liquid cooling kits for edge computing nodes. The filter is compatible with a wide range of coolants, including deionized water, propylene glycol water mixtures, and fluorinated fluids. Each unit is rigorously tested with bubble leak detection and pressure pulse tests, complying with ASME standards and data center liquid cooling safety guidelines.

In summary, this 316L stainless steel liquid cooling filter provides reliable protection against micro‑contamination, ensuring that the cooling system operates at peak efficiency while maximizing uptime. For AI data centers where every second of compute time matters, a clean cooling loop is not an option but a necessity, and this filter delivers that peace of mind with durable, low‑maintenance, and high‑performance construction.
