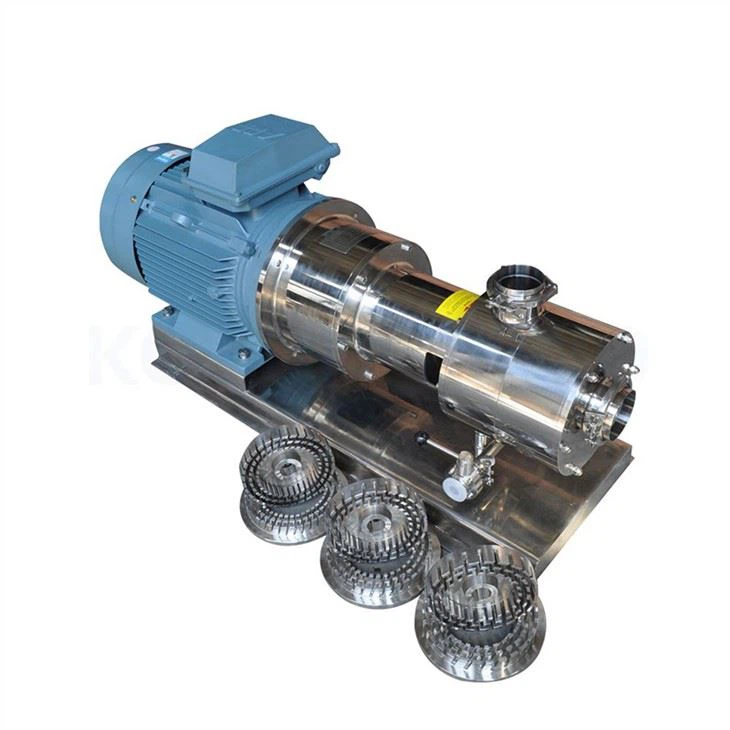

Three stage emulsifying pump have three sets of rotor and stator. In line high shear emulsification pump is a high-efficiency mixing pump that integrates mixing, dispersion, homogenization, and emulsification. The main working parts are composed of a stator and a rotor. The rapid rotation of the rotor generates centrifugal force, and the stator remains stationary. Through the precise combination of the rotor and the stator, a strong shearing force is generated during high-speed rotation, and the material is strongly sheared. So as to make immiscible solid phase, liquid phase, gas phase and other media.
|
MODEL |
POWER （KW） |
RPM （R/MIN） |
FLOW （M³/H） |
INLET |
OUTLET |
|
SRH-3-60 |
4 |
2900 |
0-4 |
DN40 |
DN40 |
|
SRH-3-100 |
7.5 |
0-8 |
DN50 |
DN40 |
|
|
SRH-3-120 |
11 |
0-12 |
DN50 |
DN40 |
|
|
SRH-3-140 |
15 |
0-18 |
DN50 |
DN50 |
|
|
SRH-3-165 |
22 |
0-22 |
DN65 |
DN50 |
|
|
SRH-3-200 |
37 |
0-30 |
DN80 |
DN50 |
|
|
SRH-3-220 |
55 |
0-40 |
DN100 |
DN65 |
|
|
SRH-3-240 |
75 |
1440 |
0-55 |
DN100 |
DN65 |
|
SRH-3-260 |
90 |
0-65 |
DN125 |
DN80 |
|
|
SRH-3-300 |
110 |
0-80 |
DN125 |
DN100 |
|
|
SRH-3-360 |
132 |
0-100 |
DN150 |
DN125 |
|
|
SRH-3-380 |
160 |
0-120 |
DN150 |
DN125 |
|
|
SRH-3-400 |
185 |
0-140 |
DN150 |
DN125 |
