Designed for fine filtration and low hold-up volume. Ideal for small-batch applications. Premium Structures: Features a high-surface-area pleated filter structure for an extended service life and low initial pressure drop. Easy Maintenance: Equipped with LUER or Hose Barb inlets/outlets for effortless installation and quick replacement. Shell Options: Standard Polypropylene (PP) housing or UV-opaque black housing to suit various light-sensitive requirements.
|
Parameter |
Specification |
|
Filter Model |
CFS Series |
|
Membrane Materials |
PP / PES / PTFE / NF / PF1 / PS2, etc. |
|
Housing Material |
Polypropylene (PP) |
|
Length Options |

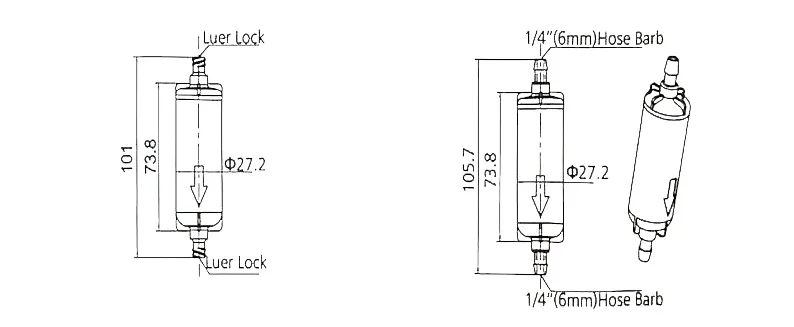

101 mm (Luer) / 105.7 mm (Hose Barb) |
|
Filtration Area |
$150 \text{ cm}^2$ |
|
Max. Working Temperature |
80°C |
|
Max. Differential Pressure |
0.6 MPa |
