Bag Filter Housing Skid With Diaphragm Pump

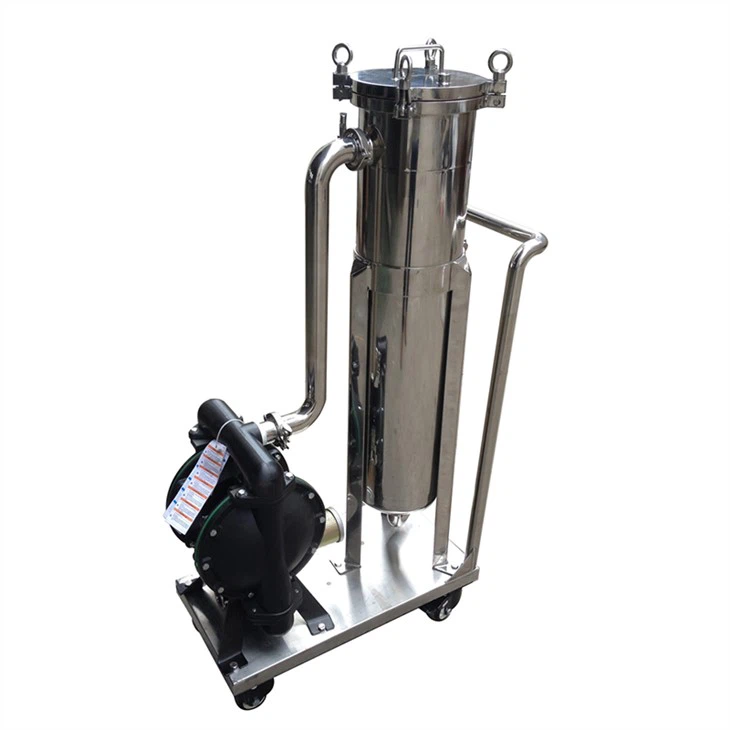

The mobile bag filter system equipment produced by Kosun Fluid includes a standard bag filter (#1 or #2 filter bag), a sanitary pneumatic double-chamber diaphragm pump, control switch box, The DN25 and DN50 pipeline and valve. All equipment is installed on the platform of the trolley. It can be moved to any work production line at will for one-step fixed installation for filtering.

Introduction of the bag filter housing

Bag filter housings are particularly useful for filtering large volumes or high viscosity liquids, which are composed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement.Easy open by Swing bolts friendly operation with minimal downtime for bag change-outs. Reduces downtime to increase productivity and decrease operating costs. Material Construction  : Stainless Steel 304 ,Stainless steel 316L

Features of the bag filter housing :

High flow rates

High temperature & High pressure design are available

Wide range of bag size for choice 1# ,2# ,3# ,4#

Can be Single cavity housings or Multi-round.

Steam Jacket could be designed

Custom made service

The inlet design can be top entry or side entry

 Applications of the bag filter housing :

• Automotive
• Food and Beverage
• Chemical Processing
• Paints, Inks, Resins and Coatings
• Electronics
• Petrochemicals
• Municipal Water Treatment
• Industrial Water Treatment
• Pulp and Paper
• Pharmaceutical
• Lubricants, Metalworking Fluids
• Solvents
