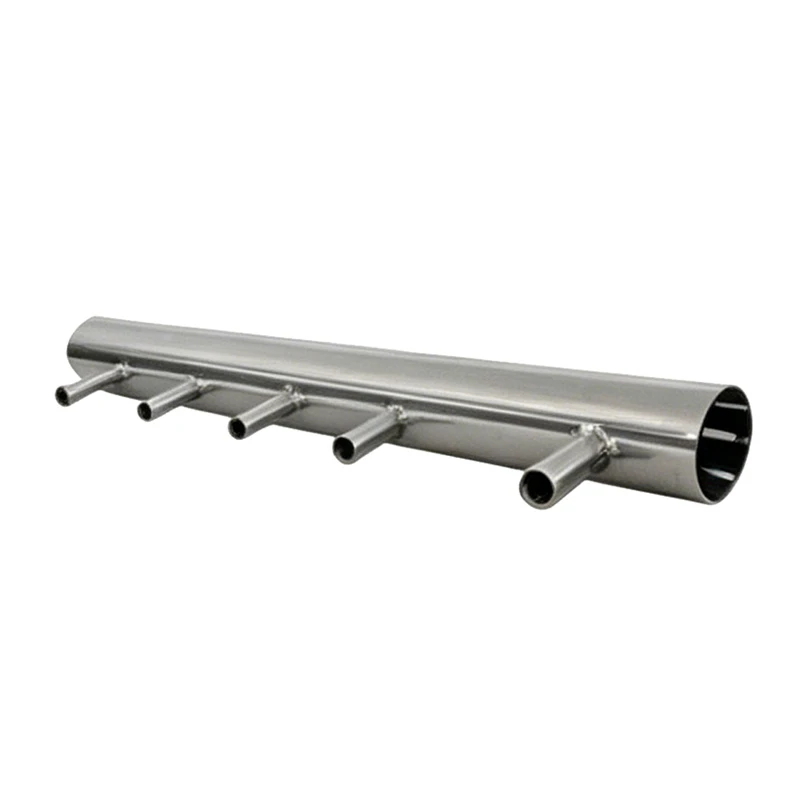

The Stainless Steel M1 Channel Joint Tee is a high-performance multi-pass pipe fitting designed for efficient fluid and gas
distribution in complex piping systems. Its T-type three-way structure allows connection of multiple lines in a compact space, reducing the need for additional fittings.
Why choose this product?
Made from premium stainless steel, this tee offers excellent corrosion resistance, making it suitable for water, oil, air, and
many chemical media. The multi-pass design ensures smooth and leak-free flow distribution, even under medium to high pressure conditions.
The M1 series is precision machined to guarantee reliable sealing and easy installation. It provides a wide selection of outer diameter sizes to fit various pipeline requirements, allowing flexible system integration.
Common applications include:
* Hydraulic and pneumatic systems
* Industrial water and gas lines
* Machinery lubrication circuits
* Automotive and agricultural equipment
* Chemical and food processing (with appropriate grade)
* Marine and shipbuilding installations
Customization options: Different stainless steel grades (304, 316, etc.), thread types, surface finishes (polished, nickel
plated), and non-standard dimensions are available. OEM, ODM, and sample orders are welcome.
Whether you need a standard solution or a custom design, the Stainless Steel M1 Channel Joint Tee delivers durability,
reliability, and performance.
|
Size |
OD |
T |
EL |
P |
M1 |
M2 |
|
1/2" |
63.5 |
0.89 |
76.2 |
152.4 |
35 |
31.5 |
|
3/4" |
93.5 |
0.89 |
76.2 |
152.4 |
37 |
33.5 |
|
1" |
127 |
1.24 |
76.2 |
152.4 |
44 |
39 |
|
1 1/4" |
158.7 |
1.24 |
76.2 |
152.4 |
44 |
36.5 |
|
1 1/2" |
190.5 |
1.65 |
76.2 |
152.4 |
47 |
38 |
|
2" |
243 |
1.65 |
76.2 |
152.4 |
47 |
42 |
|
2 1/2" |
273 |
1.65 |
76.2 |
152.4 |
54 |
48 |
|
3" |
324 |
1.65 |
76.2 |
152.4 |
57 |
55 |
|
3 1/2" |
355.6 |
2.05 |
76.2 |
152.4 |
57 |
55 |
|
4" |
406.4 |
2.05 |
76.2 |
152.4 |
63 |
61.5 |
|
5" |
508 |
2.65 |
76.2 |
152.4 |
71 |
68 |
|
6" |
610 |
2.65 |
76.2 |
152.4 |
71 |
68 |
|
8" |
1016 |
21 |
76.2 |
152.4 |
87 |
81 |
