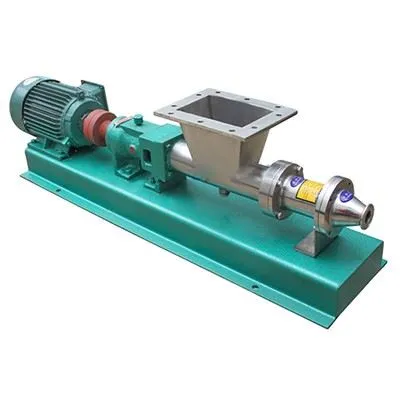

The screw pump is a positive displacement rotor pump, which relies on the volume change of the sealed cavity formed by the screw and the rubber stator to suck and discharge liquid. the surface treatment reaches 0.2um-0.4um. Used to deliver mayonnaise, Tomato Sauce, Ketchup Paste, jam, chocolate, honey etc products.
According to the number of screws, screw pumps are divided into single screw pumps, double screw pumps. The characteristics of the screw pump are stable flow, small pressure pulsation, self-priming ability, low noise, high efficiency, long life, and reliable operation; and its outstanding advantage is that it does not form vortex when conveying the medium, and is not sensitive to the viscosity of the medium. Conveying high viscosity media.
|
PRODUCT NAME |
SINGLE SCREW PUMP |
|
Connection Size |
1”-4” triclamp |
|
Material |
EN 1.4301, EN 1.4404, T304, T316L etc |
|
Temperature Range |
0-120 C |
|
Working pressure |
0-6 bar |
|
Flow rate |
500L- 50000L |
