Carbonation Stone

Carbonation Stone Carbonation Stone, a device used to diffuse carbon dioxide into beer. It is made of sintered stainless steel or sintered titanium material. Usually used inside a brewery bright tank or a brewpub serving tank, the carbonation stone is a hollow cylinder, capped at one end, into...
Send Inquiry
Chat Now

Product Introduction

Carbonation Stone

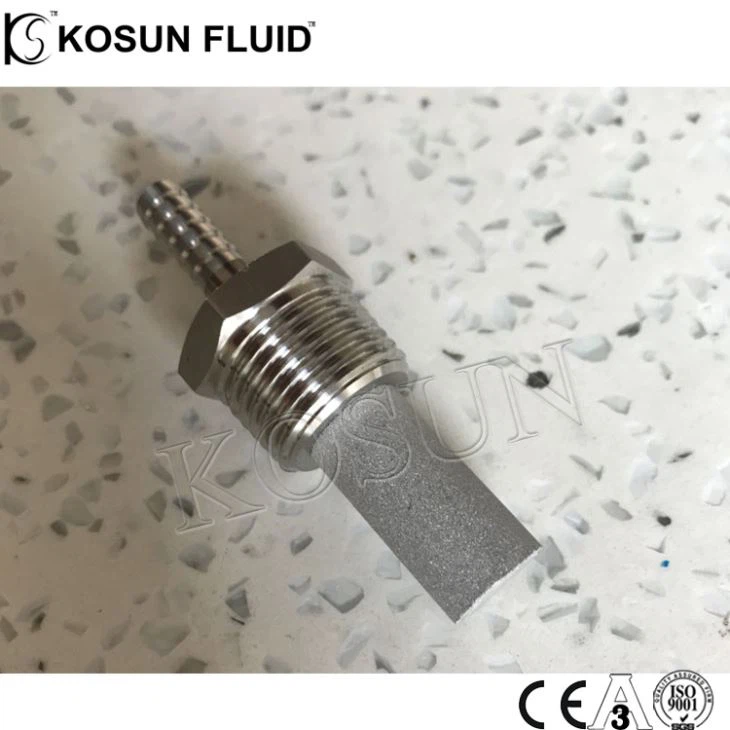

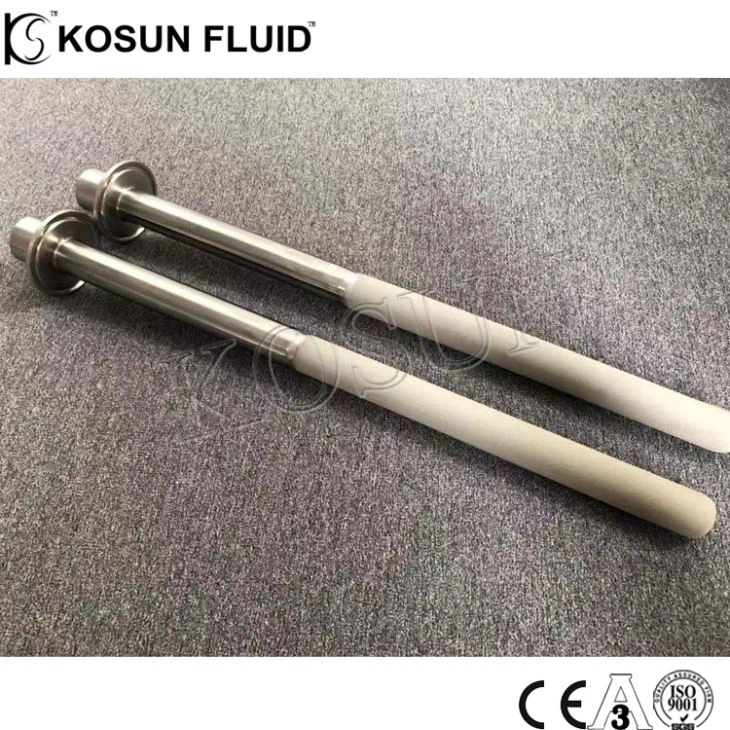

Carbonation Stone, a device used to diffuse carbon dioxide into beer. It is made of sintered stainless steel or sintered titanium material. Usually used inside a brewery bright tank or a brewpub serving tank, the carbonation stone is a hollow cylinder, capped at one end, into which carbon dioxide is forced under pressure. The CO2 diffuses through the stone, emerging on the exterior in very small bubbles. Under pressure, the small bubbles of CO2 dissolve into the beer before they can reach the surface. Carbonation stones may also be used in-line. A carbonation stone can be used to carbonate flat beer, to add CO2 to beer with inadequate carbonation for packaging or service, or to scrub dissolved oxygen from beer or water. Whether made of stone, ceramic, or sintered steel, the devices are colloquially known as “stones.”



Wort Aeration / Oxygenation

Carbonation stones are a fantastic tool to aerate wort. Keeping yeast at optimum health is achieved when the oxygen-deprived wort is aerated following the knock down process (usually inline immediately after exiting the chiller). This helps the yeast not only reproduce efficiently, but also maintain a healthy cell wall that is more tolerant to higher alcohol contents. This allows for several generations of yeast, and more importantly, can reduce fermentation time substantially resulting in faster batch turnover.

All Tri Clamp carbonation stones have the following features:

· 1½ inch Tri Clamp fitting mounts on tank ferrule

· ¼ inch FNPT gas connection

· ¼ inch FNPT fitting

· sintered stainless steel diffusing stone

· 2 micron or 0.5micron

· Stainless steel 316 or titanium material

Connection

1.5" Tri clamp or as required

Length

25 mm, 48 mm ,100mm 200mm 300mm 400mm 600mm or custom made

micron

2micron
